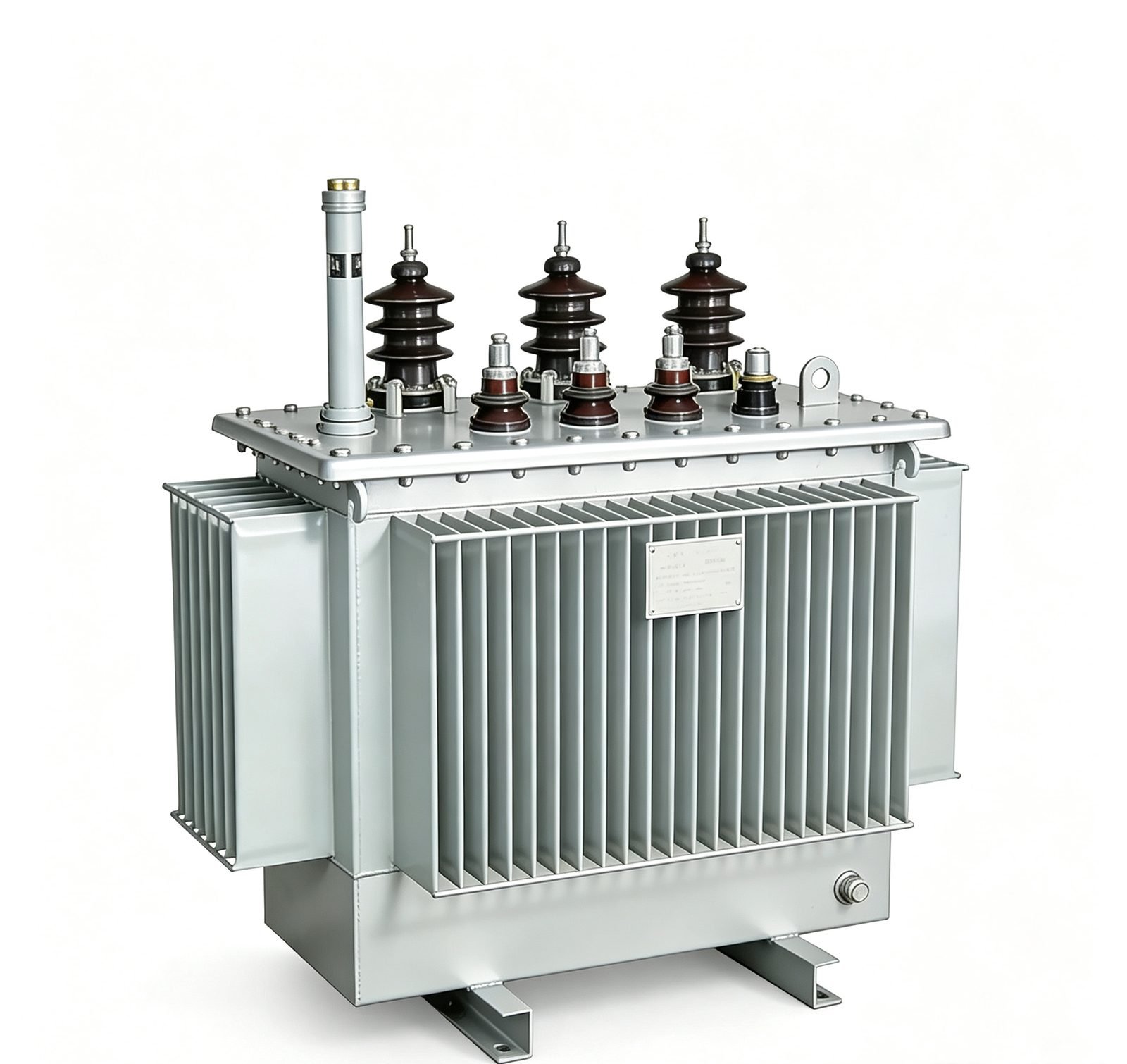

Technical Parameters & Ratings
IEC / ANSI CertifiedFactory Standard
| Power Rating | 75 kVA |
|---|---|
| Primary Voltage | 13.8 kV |
| Secondary Voltage | 0.48 kV / 0.208 kV / 0.277 kV / customized |
| Phase | Three Phase |
| Cooling Type | ONAN |
| Core Material | CRGO silicon steel |
| Connection Group | Dyn1 / Yyn0 / customized |
| Winding Material | Copper / Aluminum |
| Frequency | 60 Hz |
| Insulation | Mineral insulating oil |
| Tap Changer | Off-circuit tap changer |
| Short-circuit impedance | 4 – 6% |
| Temperature Rise | 60 – 65 °C |
| Noise Level | ≤ 60 dB at 1 meter |
| Enclosure | Hermetically sealed steel tank, weatherproof for indoor and outdoor use |
| Altitude | ≤ 1,000 m or customized |
| Ambient Temperature Range | -30 °C to +50 °C |
| Accessories | Conservator tank, oil level indicator, gas relay, pressure relief valve, etc. |
| Standards Compliance | ANSI/IEEE C57.12 / IEC 60076 design reference |
| Applications | Commercial and institutional buildings, industrial facilities, oil & gas, solar and wind energy |
| Transport & Installation | Outdoor pad-mount / pole-mount / substation |
| Warranty | Two years |
| Delivery Time | Typically 30 days, depending on quantity |
| Min. order quantity | ≥ 1 set |
Application Scenarios
- Latin American utility distribution and rural electrification projects
- Industrial facilities operating on 60 Hz ANSI power systems
- EPC contractor packages for Americas and Caribbean infrastructure
- Renewable energy grid connection in 60 Hz markets
Key Features
- 75 kVA rated capacity configured for 60 Hz ANSI and Latin American grids
- high voltage class matching standard ANSI distribution voltages
- Designed to ANSI/IEEE C57.12 guidelines with IEC 60076 cross-reference capability
- 60 Hz frequency rating for Americas, Caribbean, and parts of Southeast Asia
- Copper or aluminum winding available; pad-mount and substation configurations supported
Technical Highlights
- The 12kV switchgear is engineered for medium voltage distribution networks. It is built to IEC 60076 with factory routine testing, and can be configured to the voltage, rating, and protection requirements of the project.
Application Scenarios
- Medium voltage distribution networks
- Industrial plants and commercial buildings
- Renewable energy collection points
- Utility substations and feeder systems
- Infrastructure and public works projects
Key Features
- Integrated switching and protection for medium voltage networks
- Factory assembled and pre-tested for faster site installation
- Weatherproof enclosure for indoor or outdoor installation
- Configurable protection and metering schemes
- Configurable to project voltage, rating, and scheme requirements
Optional Configurations
- Voltage ratio and vector group configured to project requirements
- Impulse level, temperature rise, and insulation class options
- Winding material and loss level options
- Enclosure, protection degree, and paint finish options
- Temperature monitoring, protection, and remote signalling options
Quality & Compliance
- Manufactured to IEC 60076 with factory routine testing on every unit
- Type test reports and routine test certificates supplied with delivery
- ISO 9001 quality management across design, winding, and assembly
- Third party inspection and pre shipment testing available on request
- Standard 30 day lead time and 2 year warranty on the delivered unit
How to Order & Request a Quotation
- Send your rated capacity, primary and secondary voltage, and frequency
- Confirm the required standard, vector group, and cooling type
- State the installation environment such as indoor, outdoor, or coastal
- Note any required protection, monitoring, or enclosure options
- Our engineering team returns a quotation and drawing for approval
Service & Support
- Custom design to match non standard voltage and rating requirements
- Drawing and data sheet issued for approval before production
- Export packing and documentation for international shipment
- Technical support during installation and commissioning
- Spare parts and after sales service for the service life of the unit
